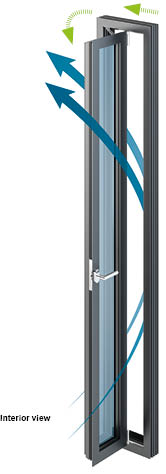

Slide-turn louvre, manually operated
Application range:
- Ventilation flap in offices / public buildings
Features:
- Concealed sliding rail and sliding carriage
- Version can be used right / left
- Gearbox with window handle
- Bar handle can be optionally used for fall protection when sash width >350mm
- Central locking on hinge side
- Locking elements taken from the Tilt & Turn product range
Technical specifications :
| Sash width: | 250 until 500mm |
| Sash height: | 500 until 3.500mm |
| Sash weight: | 500 until 3.500mm |
Adjustment range:
| Lateral adjustment: | ±2 mm |
| Height adjustment: | ±3 mm |
| Compression adjustment: | ±1 mm (Locking pin) |
Product benefits:
- Concealed components - aesthetic design
- Depending on the basic depths of the profile series, fall protection up to 350 mm sash widths
- Suitable for high wind loads (window sash is pressed inwards)
- Cost-effective ventiliation option compared to PAF systems
- Easy assembly
