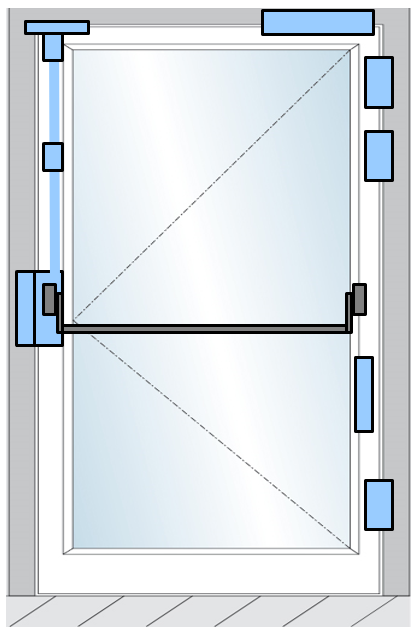

Series 200 self-locking panic lock with additional locking, function B

Series 200 – panic lock with additional locking / 34 backset / function B

• can be used right / left (reversible latch)
• Direction of escape inwards / outwards configurable
• Lock case dimension: 250*15,5 mm
• Counter backset: 15 mm
• Bolt exclusion: 20 mm

Series 200 - strike plates

Series 200 - spring-supported rod guide ( 3 levels)

Additional locking on top  (12mm Rod stroke / 16mm exclusion)

Series 200 - Strike plate for snap bolt

Lever handle design (outside) - (DIN EN 179)

Panic bar PS99, Series 200 stainless steel (inside)

• can be used right / left
• Nut rotation angle 27° active leaf / 45° inactive leaf
• Surfaces stainless steel matt brushed / aluminium C-O anodised
• Construction height: 99 mm (DIN EN 1125 / class 2)
• Door width up to  1.500mm

Aluminium butt hinge, 3 parts, can be used right / left
(sash side with counter plate / frame side direct fixing)

• Load capacity: up to 240 kg
• Hinge role: Ø 22 mm / length: 192 mm
• Height adjustment: ±3 mm
• Rebate adjustment: ±2 mm

Door closer TS 93 B (Dorma) with sliding rail outwards opening

Stainless steel round tube handles

Flat shape aluminium handles
