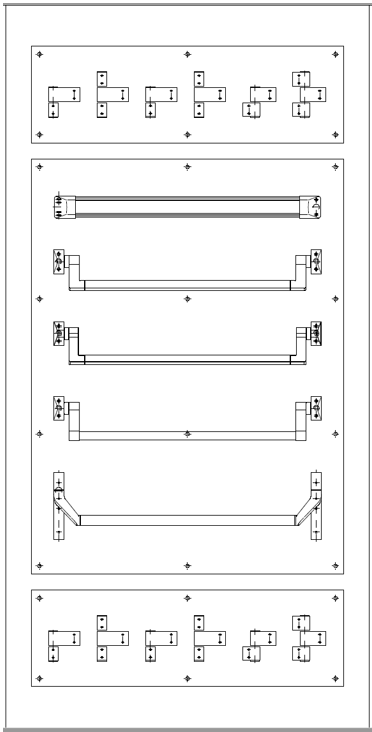

Exhibit Door 11
Product overview panic fittings according to EN1125:
3D-Design-Door hinge (new door hinge generation)
WSS-Design-Door hinge 2- and 3-part with narrow frame hinge parts, black powder-coated
- Screwing distance 65mm
- Height adjustment +/- 3mm
- Rebate adjustment +/-3mm (Falzluft)
- Gasket pressure +/-1mm
- planned load capacity 160kg, when using 3 pieces of 2-part hinges
- planned load capacity 250kg, when using 3 pieces of 3-part hinges
WSS-Design-Door hinge 2- and 3-piece with large frame hinge parts, white powder-coated
- Screwing distance 65mm
- Height adjustment +/- 3mm
- Rebate adjustment +/-3mm (Falzluft)
- Gasket pressure +/-1mm
- planned load capacity 160kg, when using 3 pieces of 2-part hinges
- planned load capacity 250kg, when using 3 pieces of 3-part hinges
Panic push bar PD 99, stainless steel effect
- right/left usable
- Rotation angle pre-assembled, 27°, 30°, 40°, 45°
- Door width up to 1.600m
Panic bar Design-Line
Panic bar handle Design-Line 99 - C-0 anodized
- right/left usable
- Rotation angle adjustable, starting at 22° till 45°
- Door width up to 1.300mm
WSS panic bar handle Design-Line 128 - stainless steel
- right/left usable
- Rotation angle adjustable, starting at 22° till 45°
- Door width up to 1.600mm
Panic bar handle Design-Line 128- round design- C-0 anodized
- right/left usable
- Rotation angle adjustable, starting at 22° till 45°
- Possible door width up to a max. of 1600mm
Panic bar handle PS99 Series 200, C-0 anodized / stainless steel
- right/left usable
- Rotation angle 22°, 27°, 35°, 45°
- Door width up to 1.600mm
