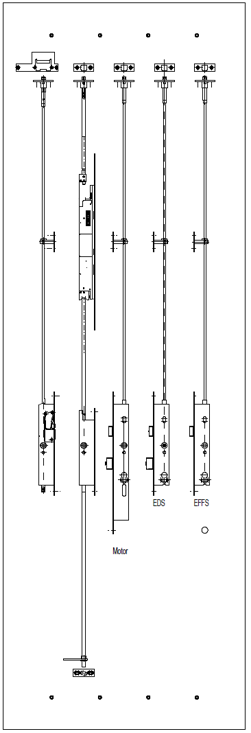

Exhibit Door 12
Product solutions for motorized doors, lock series 200:
Panic counter box with electric strike
- with spring loaded latch head for electric strike application
- only top-locking e.g. for double-leaf automated doors
Panic counter box for reversing gear or motorized opening
- top and bottom locking
- Opening via motor unit or lifted lever handle (EN179)
Self-Locking Panic Motor Lock Series 200
- self-locking , function E , using a motor the main latch (+additional latch on top) and the bolt can be retracted
- 35mm - 45mm backset
- with integrated control and interrogation, use of the standard 14-pin WSS cable
Self-Locking Panic Lock Series 200
- self-locking, split nut, function EDS (electronic lever handle control)
- 35mm - 45mm backset
- with integrated control and interrogation, use of the standard 14-pin WSS cable
Panic latch lock with electronic latch hold
- continuous nut, with switch
- 35mm - 45mm backset
- the magnet must be activated ( powered ) and then the latch(es) must be pressed in or pulled in via the lever handle. 12V/0,6A
- The latch(es) can be kept permanently in the lock case via the use of a magnet
- In the event of a power failure, the latch(es) automatically regain their function and hold the door shut
- If required, a microswitch can be used to detect the position of the latch
