Parallel opening window, manual operation

Exhibit object 2

Use cases:

Ventilation windows in offices (outside)
Oversized window heights and widths
Manual or motorized operation
High basic security in terms of burglary protection without RC locks

Equipment:

PAF 120 kg with one-hand operation, horizontal bottom handle

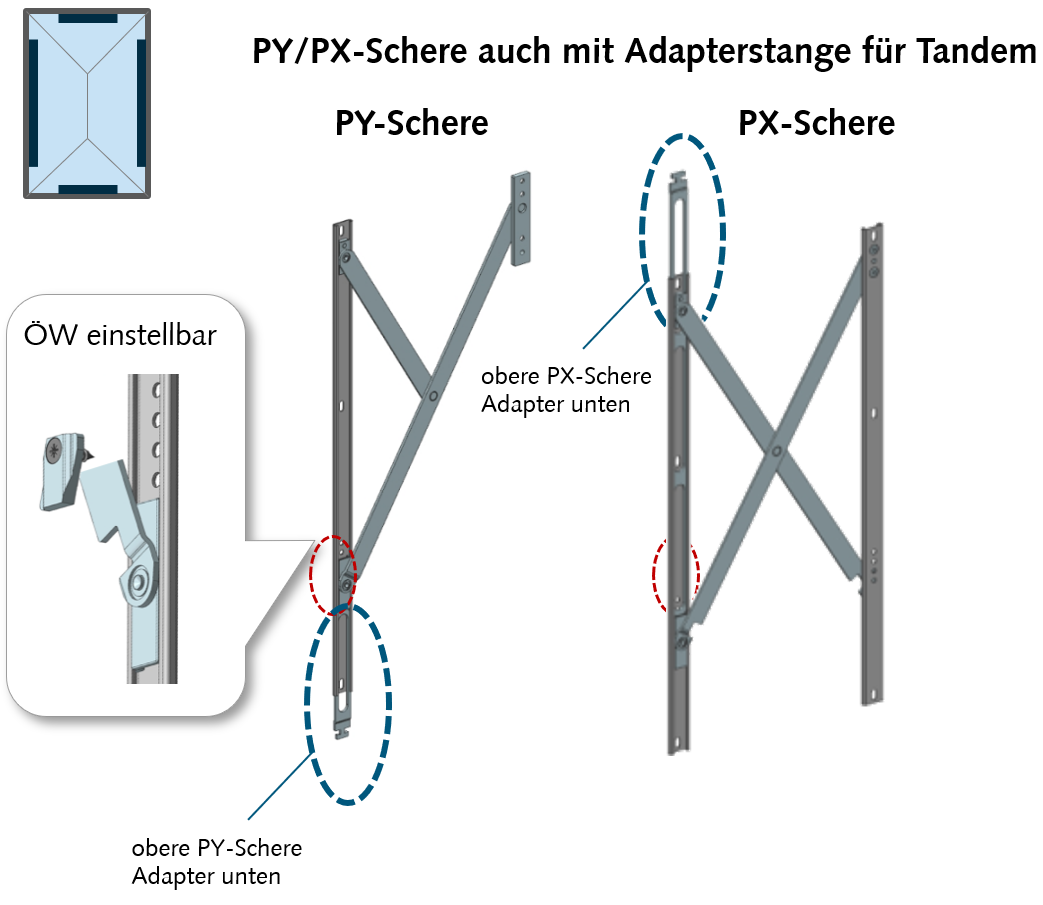

PAF scissors tandem PY-PX (2 pieces)
PAF scissors for lateral stabilization (2 pieces)
Opening width 160 mm, lockable via window handle

Technical data:

Window width:	800 to 1,600 mm
Window height:	1,200 to 3,400 mm (3 scissor sizes)
Wing weight:	PAF scissors TD-PY-PX, max. 150 kg (manual operation) PAF scissors TD-PY-PY max. 250 kg (motorized operation recommended)
Space requirement:	Clearance: 17 mm / Folding depth: 23 mm

Adjustment range:

Height adjustment:	±3 mm
Parallelism adjustment:	±20 mm
Pressure adjustment:	±1 mm (closing pin)

Competition: Space requirements for PX shears

The space requirement for PAF scissor stays was specified by Securistyle at the end of the 1990s. Due to the large amount of space required, special profiles are necessary for PAF windows.

WSS: Space requirement PX shears

WSS currently has the smallest space requirement for PAF shears. This enables the use of standardized countersunk folding profiles for PAF elements.

Product overview PAF modular system

Technical details:

2 versions
Opening width adjustable in 6 positions by means of a stop. ÖW = 175 mm to approx. 220 mm
Load capacity in pairs up to 60 kg
FFH min. 550 mm (with height adjustment 600 mm)
PY stay: can be used left / right, vertical installation
PX shears: left and right version, vertical and horizontal installation
